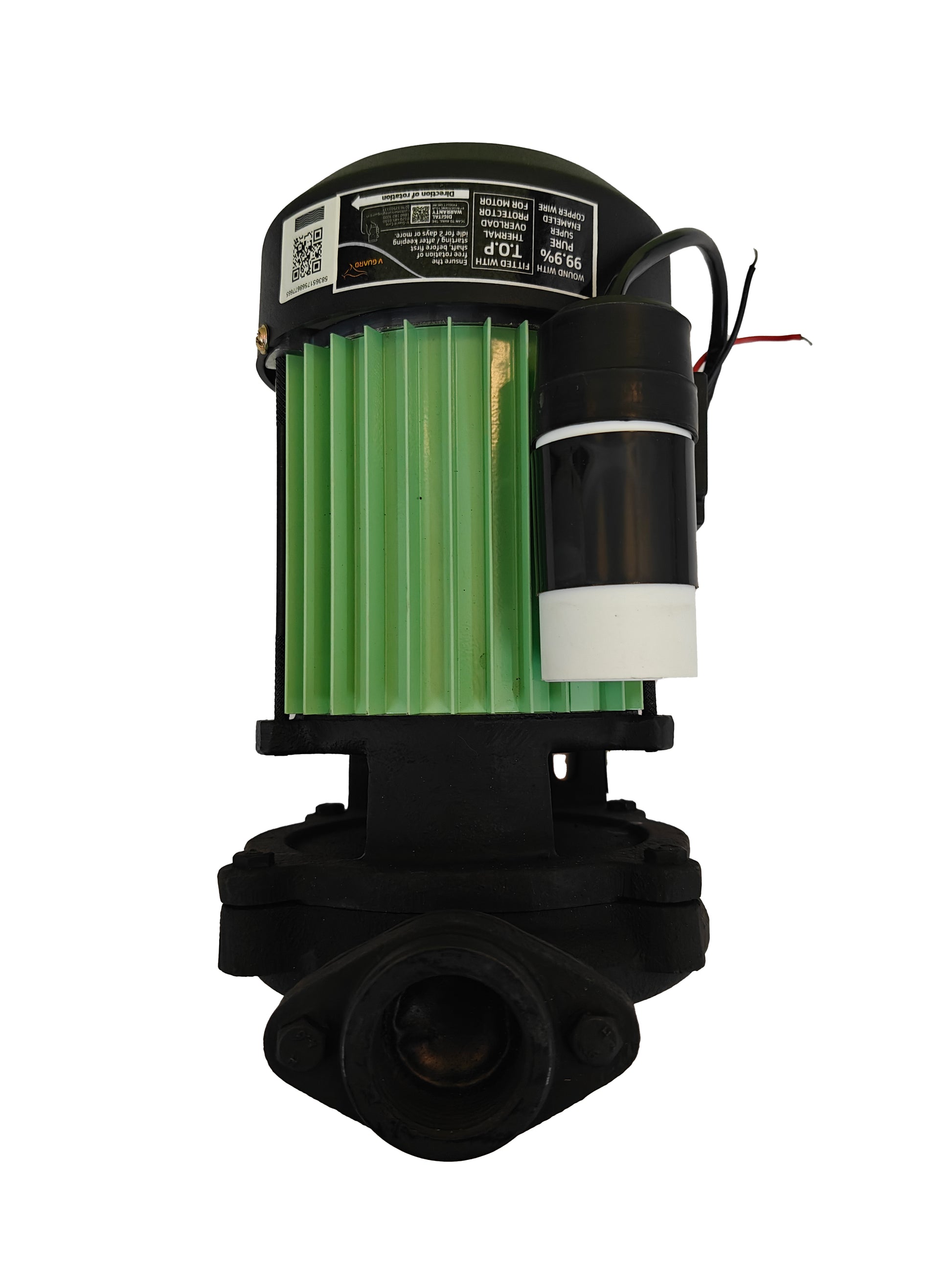

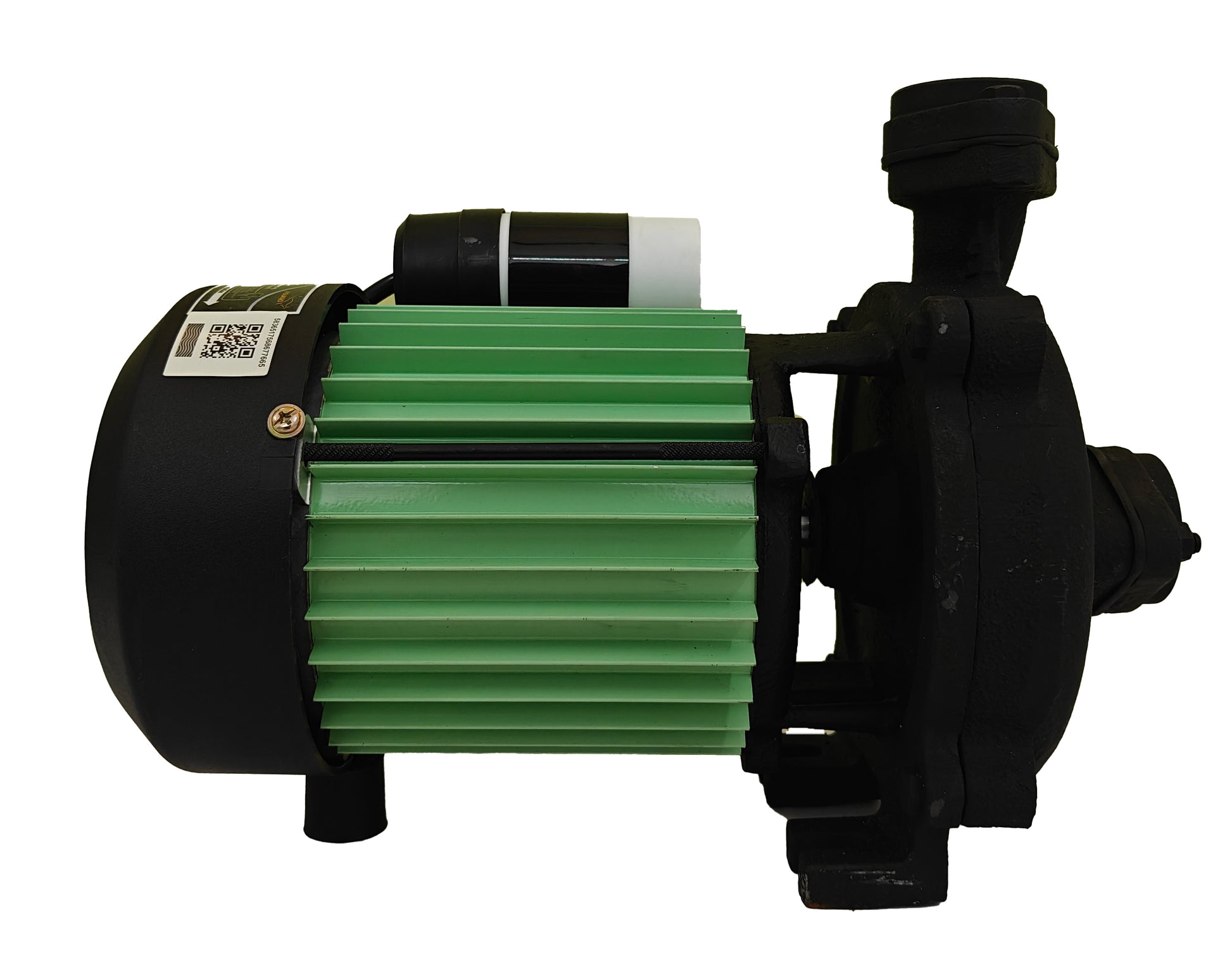

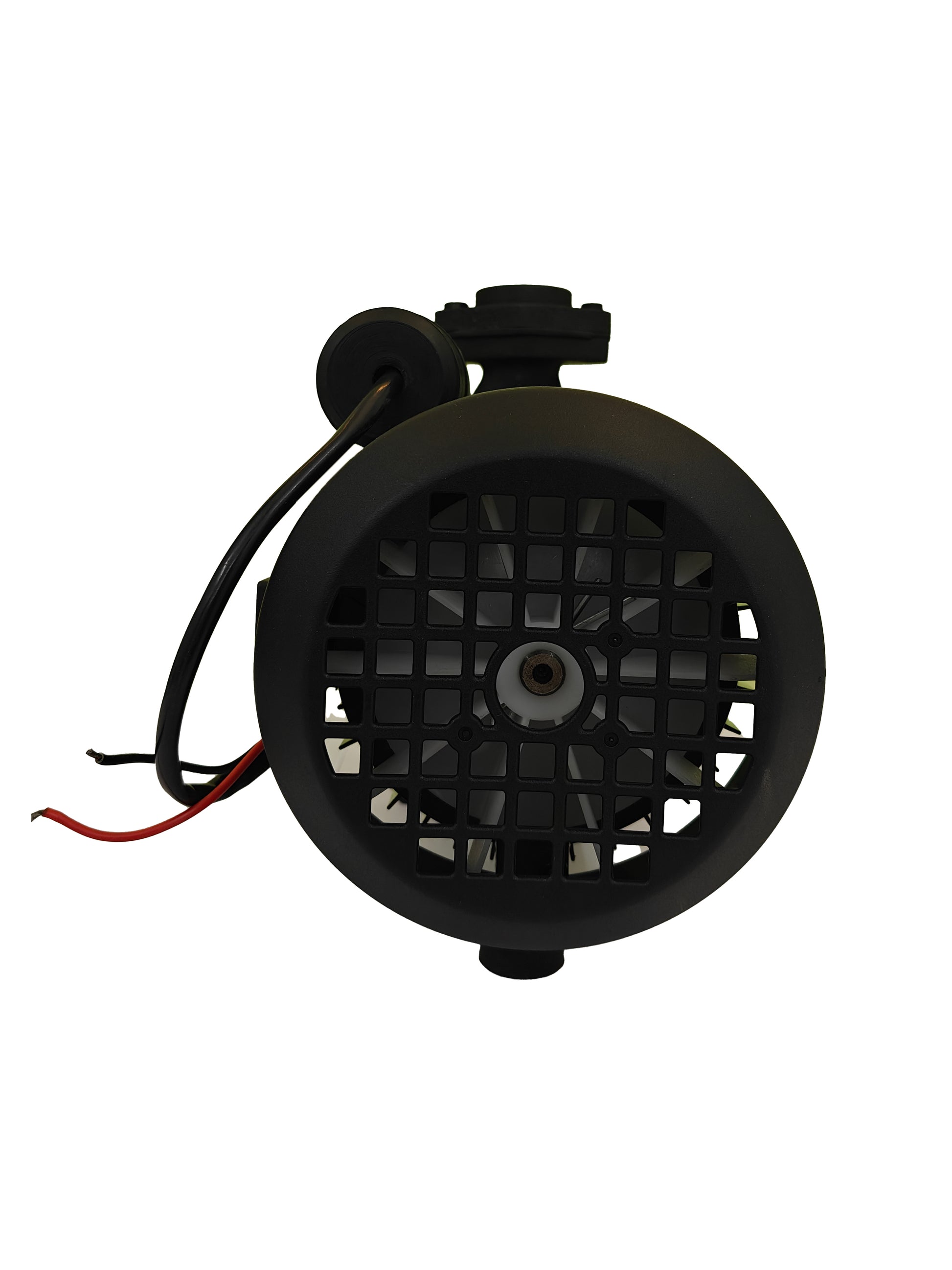

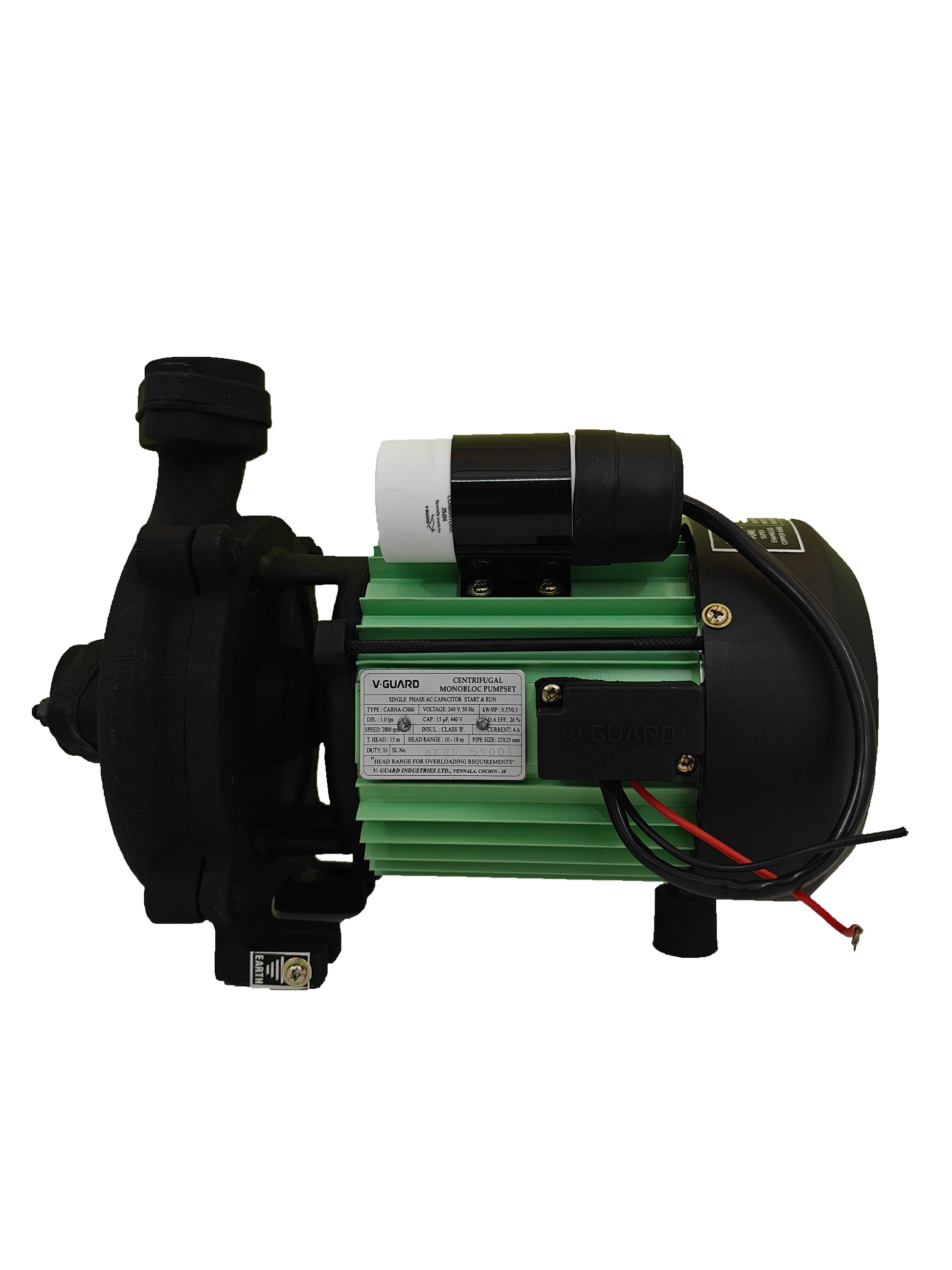

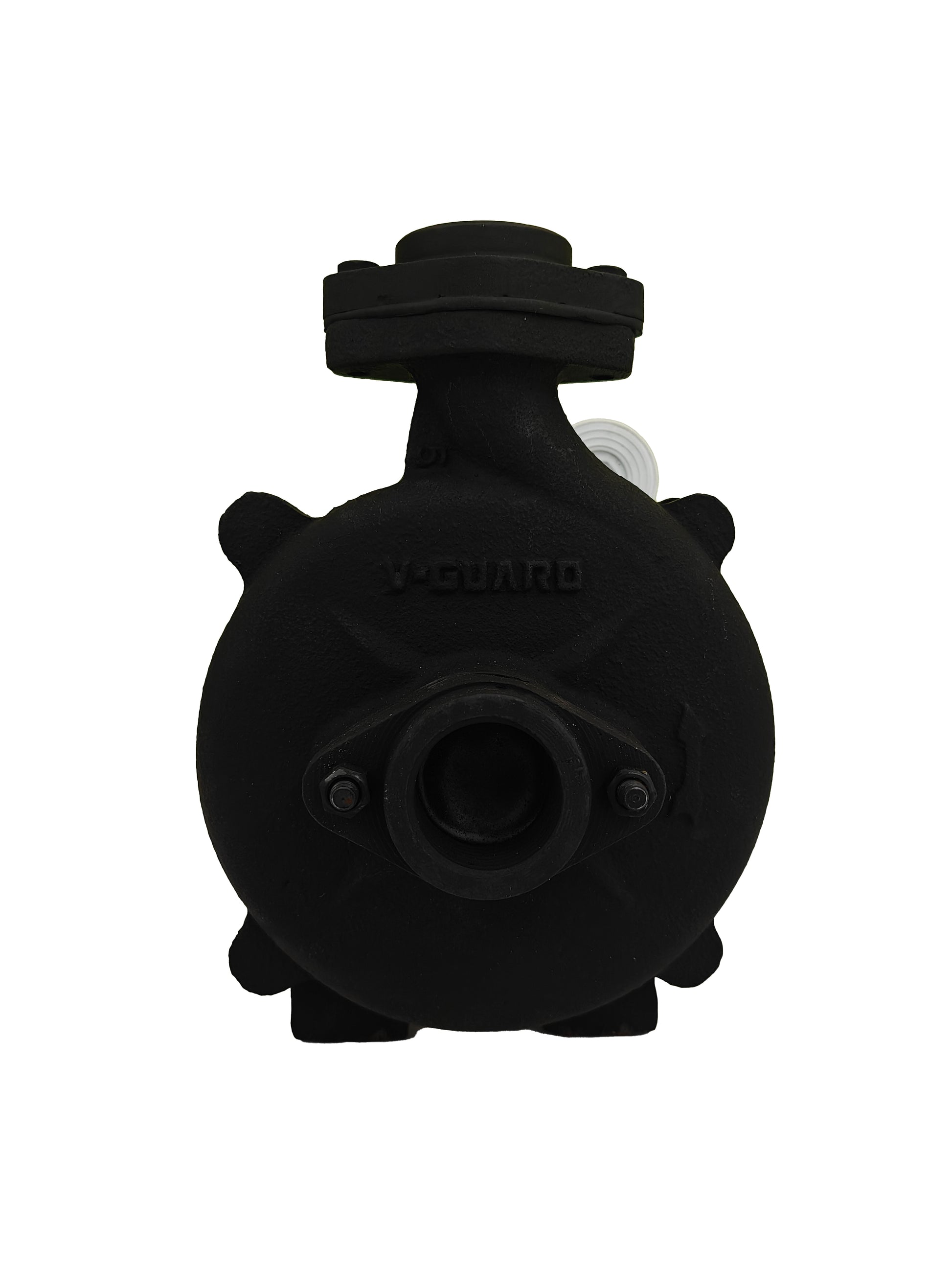

V GUARD CENTRIFUGAL MONOBLOCK PUMPSET CARNA-CH60 0.5 HP 1 PHASE

The CARNA-CH60 Water Pump is a compact and efficient solution designed to meet domestic water supply requirements with ease. Powered by a 0.37 kW (0.5 HP) motor, it runs on a 240V, 50 Hz single-phase supply and consumes a maximum of 4 Amps. Built for continuous duty (S1), the pump delivers a head range of 10 to 18 meters, with a total head of 15 meters, ensuring reliable performance for household applications. With a discharge capacity of 1.0 liters per second, it provides steady water flow to meet daily needs. The motor is equipped with Class B insulation for enhanced protection and durability, while the standard 25 x 25 mm (1” x 1”) pipe size ensures easy installation and compatibility. Backed by a 12-month warranty, the CARNA-CH60 is a dependable and long-lasting choice for consistent water supply.

This water pump is engineered with advanced features to deliver reliable performance and long-lasting durability. It is designed for faster tank filling with superior suction power, ensuring efficient water lifting even under challenging conditions. The pump operates effectively across a wide voltage range, making it suitable for varying power supply situations. Equipped with a totally enclosed fan-cooled (TEFC) induction motor, it provides enhanced safety and efficiency during continuous operation. A built-in thermal overload protector safeguards the motor from overheating and potential failures, while double-sealed ball bearings with self-lubrication ensure smooth running with minimal maintenance. With its superior hydraulic design and overall efficiency, this pump guarantees dependable water performance for household and utility applications.

12 MONTHS
